- Description
Description

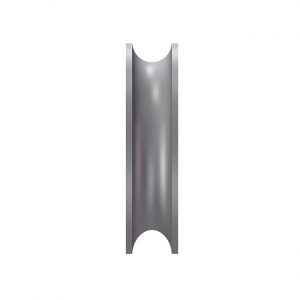

Solid heart thimbles are commonly used to terminate crane wire ropes and are ideal to interface directly with a rigging screw, turnbuckle or other rigging accessory.
Features
- Manufactured in Australia
- Cast Steel
- Holes drilled to order
Size
- Rope sizes 8mm – 75mm
Surface Finishes
- Black self colour
- Galvanised
- Painted
Standards
- AS1138

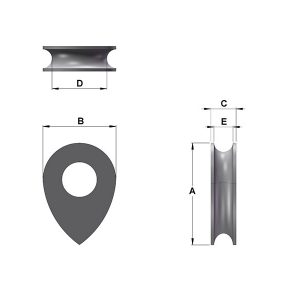

Dimensions
| Rope Diameter | A | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 8 | 48 | 37 | 13 | 27 | 8 | 0.2 |
| 10 | 57 | 46 | 15 | 34 | 10 | 0.4 |
| 11 | 70 | 53 | 20 | 38 | 13 | 0.5 |
| 13 | 83 | 60 | 25 | 46 | 13 | 0.6 |
| 14-16 | 94 | 70 | 28 | 52 | 18 | 0.7 |
| 18-20 | 113 | 75 | 32 | 57 | 21 | 1 |
| 22 | 127 | 95 | 33 | 68 | 24 | 1.5 |
| 24 | 142 | 107 | 38 | 77 | 26 | 1.8 |
| 26 | 156 | 117 | 41 | 82 | 28 | 2.5 |
| 28 | 166 | 123 | 42 | 89 | 31 | 3 |
| 32-36 | 204 | 151 | 53 | 114 | 39 | 6.7 |
| 38-42 | 231 | 170 | 55 | 125 | 44 | 11.4 |
| 44 | 252 | 186 | 64 | 136 | 47 | 11.4 |
| 48 | 267 | 202 | 65 | 148 | 50 | 12 |
| 52-54 | 293 | 222 | 73 | 162 | 54 | 20 |
| 58 | 330 | 245 | 82 | 174 | 61 | 28 |
| 64 | 374 | 274 | 90 | 198 | 65 | 44 |
| 70-75 | 405 | 310 | 105 | 223 | 77 | 52 |
